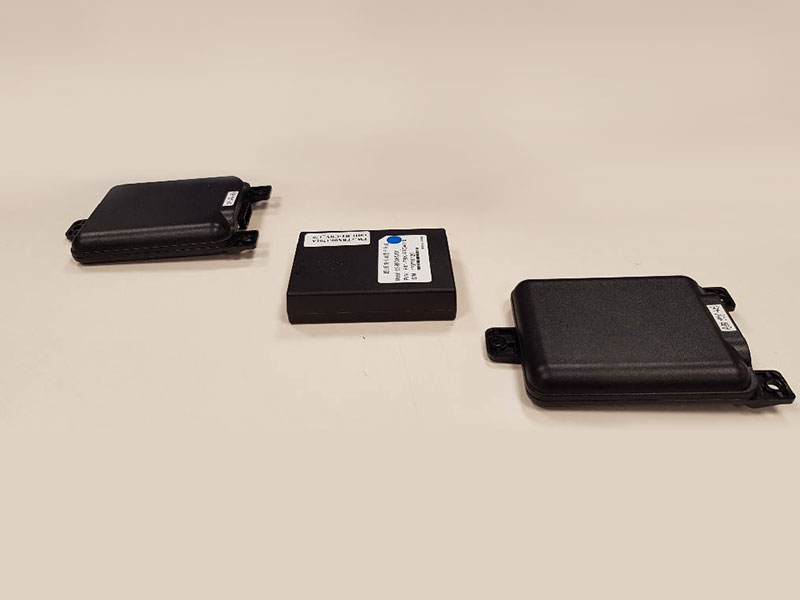

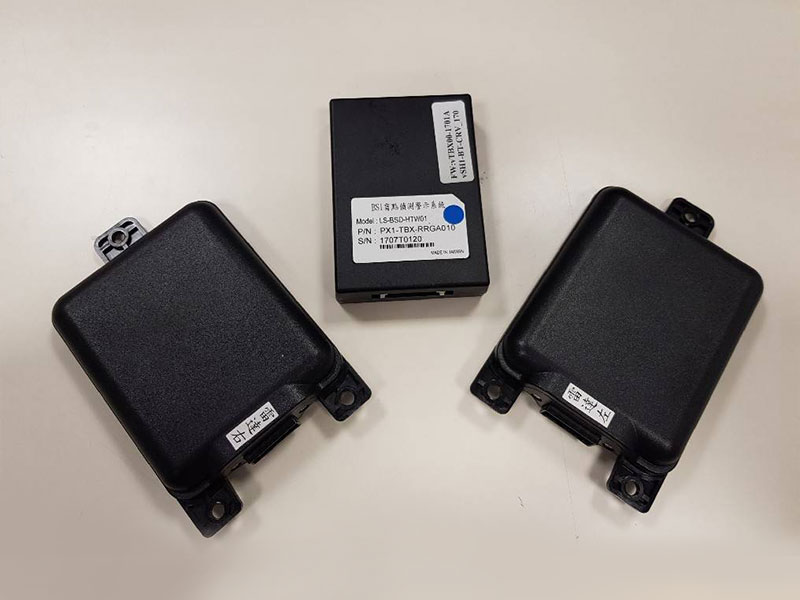

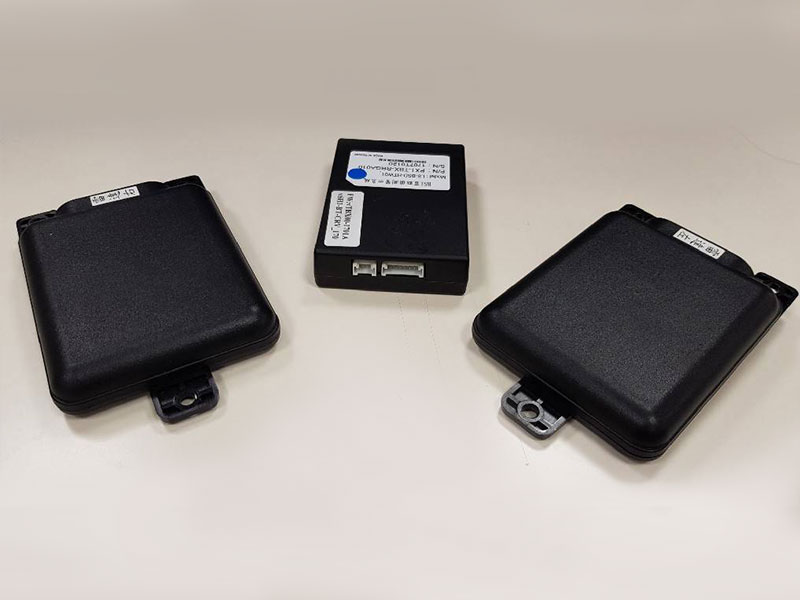

24GHz Automotive Collision Warning Radar – Short Range Radar (SRR)

24GHz Automotive Collision Warning Radar Application

1. SRR – Blind Spot Detection (BSD)
  • Function: When the vehicle changes lane, alert the moving target in the warning zone.
  • Satisfy ISO17387 LCDAS Type I (BSD) requirement.
  • The warning zone of BSD could be customized.

2. SRR – Lane Change Alert (LCA)
  • Function: When the vehicle changes lane, alert the fast approaching target in the warning zone.
  • Satisfy ISO17387 LCDAS Type III (LCA) requirement.
  • The warning zone of LCA could be customized.

3. SRR – Rear Crossing Traffic Alert (RCTA)
  • Function: Alert the crossing target in the warning zone when the vehicle is stop or reversing.
  • Only alert the approaching target
  • The warning zone of RCTA could be customized.

4. SRR – Door Open Warning (DOW)
  • Function: Alert the approaching target including vehicle, motorcycle, bike and passenger in the warning zone when the vehicle is stop and opens the door.
  • Alert in 3 minutes after the engine is turn off.
  • The warning zone of DOW could be customized.

24GHz Automotive Collision Warning Radar
Radar Type 1T2R
Freq. Band 24.05~24.25GHz (K-Band)
Averaged Transmit Power 10mW
Instrumentation Range/Adjustable 75m
Horizontal angle Coverage ≧100°
Cycle Time ≦40ms
Voltage Range 9~16VDC
Operation Temperature -40° to +85°C
Enclosure IP67
Dimension/Weight 113.3mm*83.9mm*23.8mm / 149g
Interface RS-232/CAN/etc.
Regulation ISO 17387-2008, LCDAS
